Diode Dynamics Stage Series Reverse Light Kit | 2023+ Colorado / Canyon

SKU: DD7835
Regular price $239.95

Kit Configuration
Power Level

Features

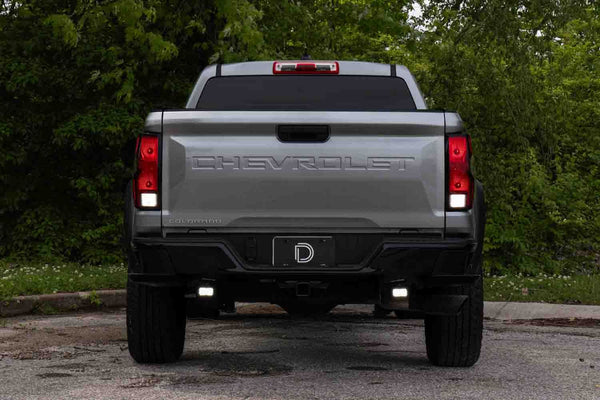

  • Allows you to mount two SSC1, SSC2, or C1R LED pods underneath the 2023+ Colorado rear bumper.
  • Provides high-power reverse light, red accent light, and 4th brake light (w/ C1R option).
  • Connects to OE tail light wiring for simple, everyday operation of lights.
  • Designed and assembled in USA.

Overview

Overview. There's plenty of ways to add light behind your Colorado, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit adds a high-power reverse light, additional running light, and an optional 4th brake light with the C1R option! It also includes a plug-and-play wiring harness for trouble-free installation. Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light.

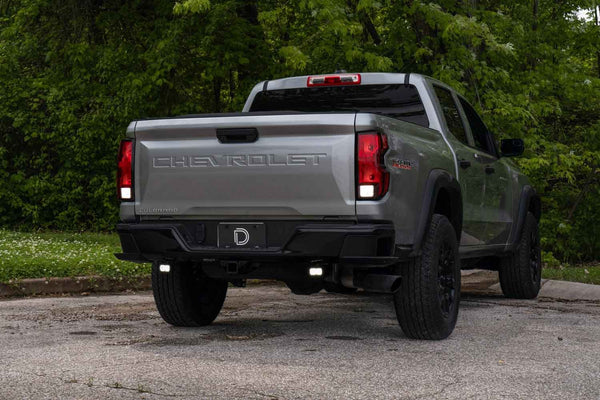

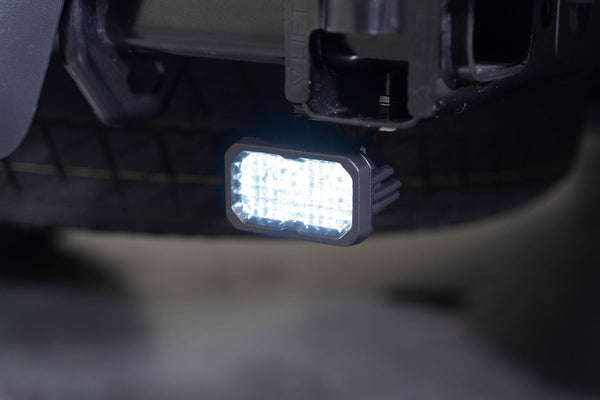

Brighter Backup. Factory reverse lights just don't provide enough light output to back up at night confidently. By pairing our patented TIR optics with high-powered LEDs, the pods included in this kit provide an additional reverse light that's several times brighter than stock reverse lights alone. Plus, they automatically come on when the vehicle is put in reverse!

Plug and Play. Thanks to the factory tail light connections, this kit is completely plug-and-play. The included tail light harness plugs right into your factory connectors for easy installation and operation.

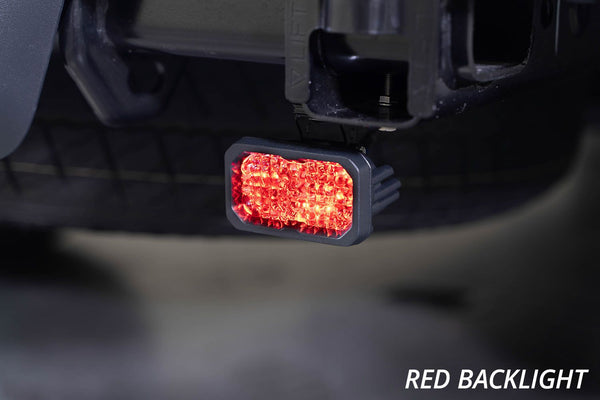

Additional Running Light. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

SafetyStrobe 4th Brake Light. The C1R option features a high-power red function to serve as a powerful 4th brake light, along with the low-power running light. The high-power red functionality activates anytime you apply your brakes, adding a 4th brake light to your vehicle.

The C1R also features optional brake light strobing, which can be activated in 15-second intervals. By default, the C1R will flash three times when the brake lights are initially applied, for greater visibility. The SafetyStrobe feature can be easily disabled if desired.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 LED pod, and a 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

Stage Series C2 Beam Patterns

Sport, Pro, or C1R. This kit is available at three different power levels. Each option uses high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The C1R option provides a slight increase in power compared to the Sport. However, the Pro option is double the amount of total power compared to the Sport. Click the Specifications tab to see more information!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


In the Box:
  • Two (2) SSC1, C1R, or SSC2 Standard LED Pods
  • One (1) Stage Series Reverse Light harness
  • Two (2) Mounting brackets
  • Four (4) Zip Ties
  • Mounting hardware
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Make: Chevrolet, GMC
Model: Colorado, Canyon
Years: 2023, 2024
