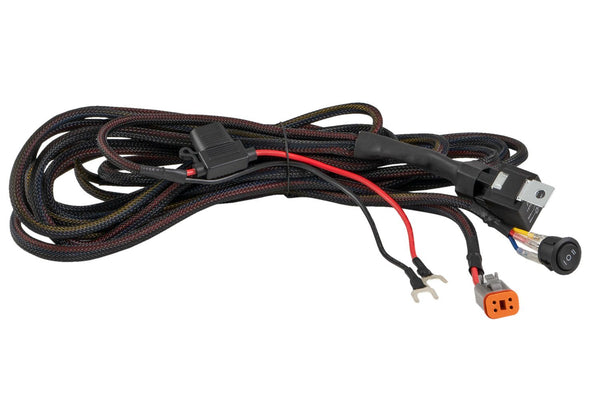

Diode Dynamics Heavy Duty Single Output 4-Pin Offroad Wiring Harness
SKU: DD4104
Regular price
$39.95
Features
- Powers Diode Dynamics LED pods with backlight functionality.
- Connects directly to the battery to power your LED pods.
- High capacity 14AWG wiring.
- Single Deutsch DT output connector.
- 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.
Overview
Stage Series. This harness is intended to be used with our Stage Series LED Pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and a Deutsch DT connector for simple plug-and-play installation.
This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.
- C1 Sport: 1.2A
- C1 Pro: 1.7A
- SSC2 Sport: 0.6A
- SSC2 Pro: 1.75A
What's Included
In the Box:
- One (1) wiring harness
- One (1) toggle switch
Quantity: One (1)
Warranty: 3 year warranty
Fitment
NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality. If you are looking to power non-backlit Stage Series products, please use the 2-Pin Harness
